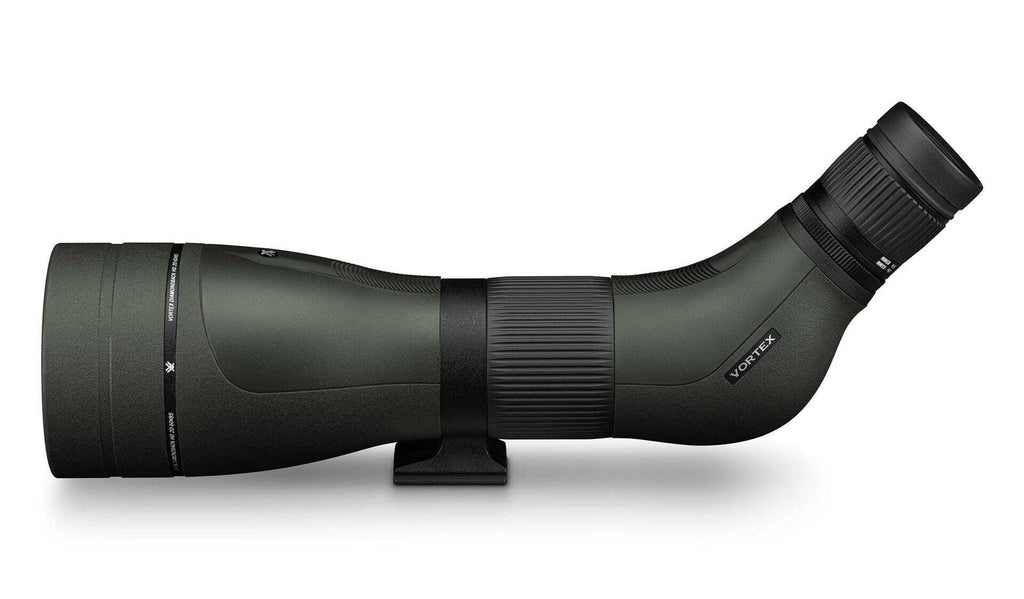

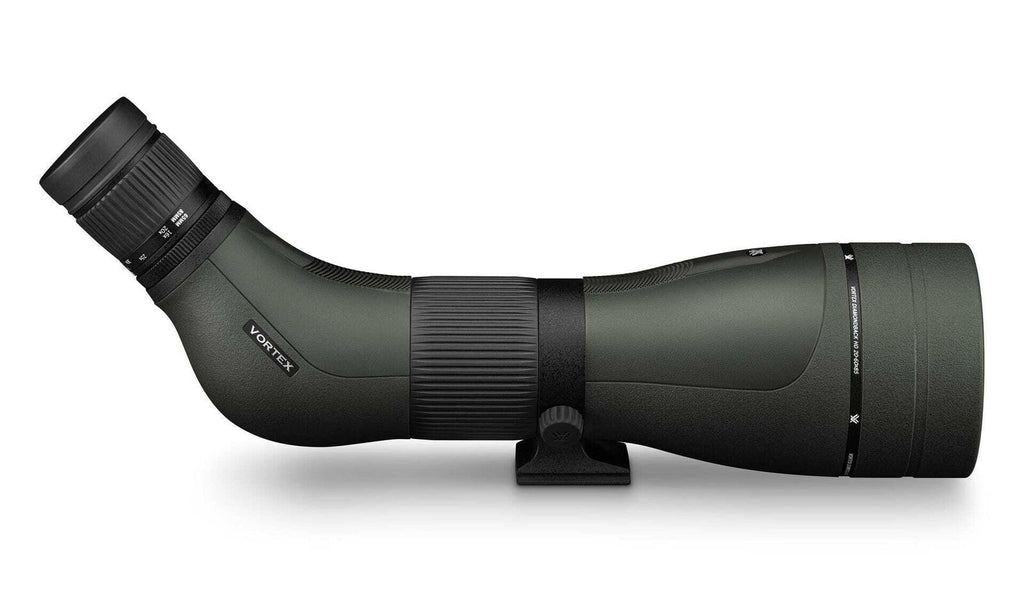

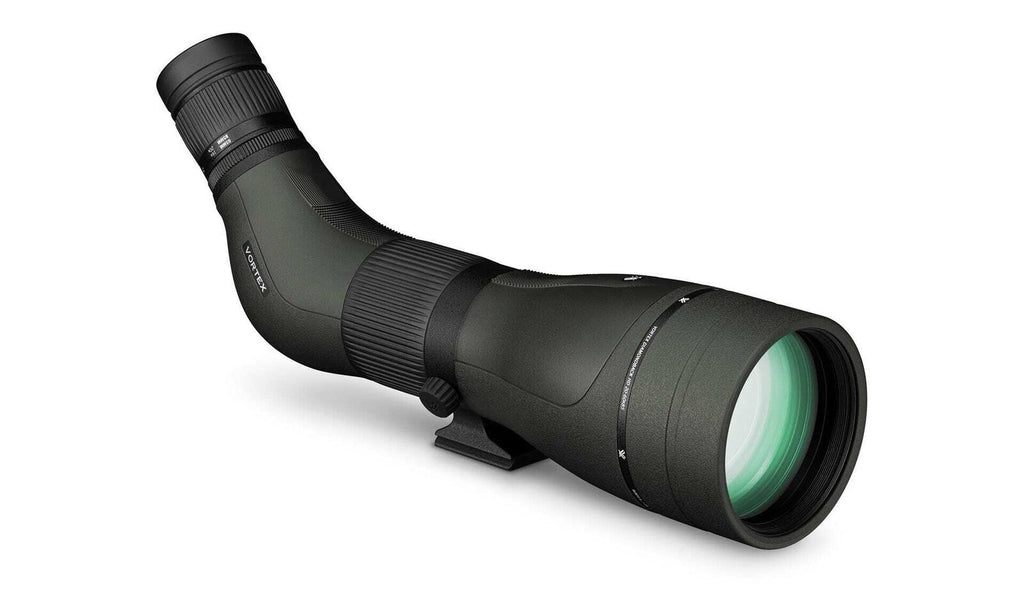

Vortex Diamondback HD 20-60x85 Angled Spotting Scope

Inspired by popular Vortex Diamondback family, these Vortex Diamondback HD Spotters are able to deliver outstanding performance in lightweight and compact package, an ideal choice when portability is matters to you.

Optical Features

Come with large 85mm objective lens, All air-to-glass surface of Vortex Diamondback HD Spotters are fully multicoated with high-density (HD) extra-low dispersion (ED) glass elements to deliver high quality image detail with high resolution and light transmission.

Extreme Rugged Build

Vortex Diamondback HD Spotting Scopes are built to offer maximum durability, that is the reason Vortex able to provide an unconditional Lifetime Guarantee. These Vortex Spotters are sealed with O-rings and nitrogen gas purged to ensure waterproof and fogproof performance. Thanks to its ArmorTek technology, the scope lenses are ultra-hard and scratch resistant.

Convenience Features

The mounting system for Diamondback HD Spotter features a standard 1/4"-20" socket and its shoe is ARCA-style compatible and no additional plates needed. The adjustable twist-up eyecups give users a comfortable viewing. The built-in sunshade reduces glare and shields while viewing through the objective lens. The spotter is also tripod adaptable. Simply mount it on a tripod (tripod adapter required) and the rotating tripod ring allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles

Specifications

Magnification 20-60x

Objective Lens Diameter 85 mm

Linear Field of View 108-60 ft/1000 yds

Angular Field of View 2.1-1.1 degrees

Close Focus 24.6 feet

Eye Relief 20.3-18.3 mm

Exit Pupil 4.25‐1.41 mm

Length 40.6 cm

Weight 1.73 kg

What's in the box?

Vortex Diamondback HD 20-60x85 Angled Spotting Scope

Neoprene cover

Tethered objective lens cap

Tethered ocular lens cap

Lens cloth
